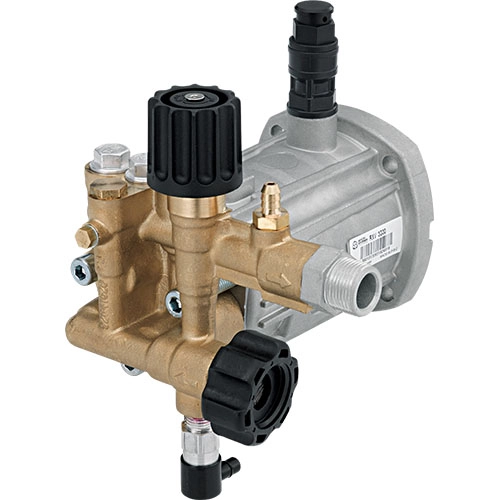

The Annovi Reverberi RXV35G30D-EZ, D version 3/4″ hollow shaft triplex pump is ready for direct or pulley driving. This pump is manufactured with a brass pump head suitable for a wide range of conditions. The RXV35G30D-EZ can produce up to 3000 Max PSI, 3.5 Max GPM, and is designed to operate at 3400 RPM. Constructed with frictionless aluminum connecting rods and ceramic pistons, the RXV35G30D-EZ weighs in at 8.8 lbs and boasts a sleek compact design.
Specifications:
| Weight | 8.8 lbs |
|---|---|
| Pump Orientation | Horizontal |
| Pump Head Material | brass |
| Connecting Rods | aluminum |
| Max GPM | 3.5 |
| Max L/Min | 13.2 |
| Max PSI | 3000 |
| Max Bar | 206 |
| Power EBHP | 7 |
| Bore Dia mm | 14 |
| Stroke mm | 9.7 |
| CSID Stamp | 1 |
| Inlet (in) | 3/4″ GHA |
| Outlet (in) | 22mmx1.4 M |
| Max Temp | 140° F |
| Oil Capacity (oz.) | 3.35 |
| RPM | 3400 |
| Shaft Size | 3/4″ |
| Shaft Version | Direct Gas Shaft |
| Shaft Type | Hollow |
| Market | Residential |
| Pump Type | Axial Radial |
