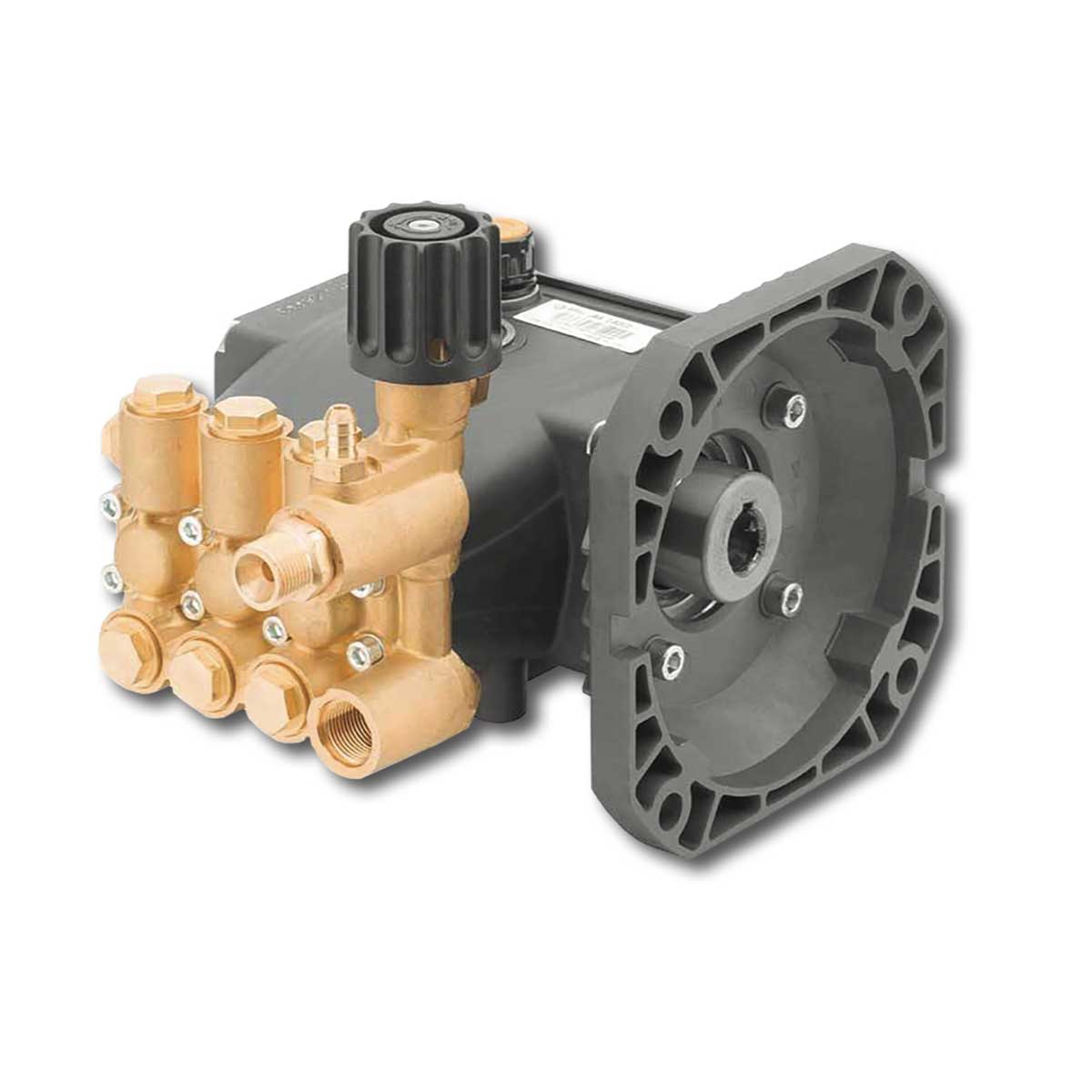

The Annovi Reverberi JRA25G22E-F8, E version 5/8″ Hollow shaft triplex pump is ready for direct or pulley driving. This pump is manufactured with a brass pump head suitable for a wide range of conditions. The JRA25G22E-F8 can produce up to 2200 Max PSI, 2.4 Max GPM, and is designed to operate at 1750 RPM. Constructed with frictionless aluminum connecting rods and ceramic pistons, the JRA25G22E-F8 weighs in at 8.81 lbs and boasts a sleek compact design.
Specifications:
| Weight | 8.81 lbs |
|---|---|
| Pump Orientation | Horizontal |
| Pump Head Material | brass |
| Connecting Rods | aluminum |
| Max GPM | 2.4 |
| Max L/Min | 9.2 |
| Max PSI | 2200 |
| Max Bar | 150 |
| Power EBHP | 3.7 |
| Bore Dia mm | 14 |
| Stroke mm | 11.5 |
| CSID Stamp | 1 |
| Inlet (in) | 3/8″F |
| Outlet (in) | 3/8″ M |
| Max Temp | 140° F |
| Oil Capacity (oz.) | 5.43 |
| RPM | 1750 |
| Shaft Size | 5/8″ |
| Shaft Version | Electric Shaft |
| Shaft Type | Hollow |
| Flange | F8 |
| Market | Commercial |
| Pump Type | Tri-Plex Plunger |
