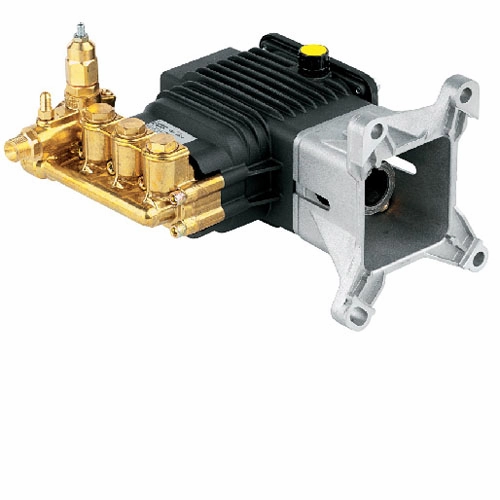

The Annovi Reverberi RSV33G31D-F40, D version 1″ hollow shaft triplex pump is ready for direct or pulley driving. This pump is manufactured with a brass pump head suitable for a wide range of conditions. The RSV33G31D-F40 can produce up to 3100 Max PSI, 3.3 Max GPM, and is designed to operate at 3400 RPM. Constructed with frictionless aluminum connecting rods and ceramic pistons, the RSV33G31D-F40 weighs in at 14 lbs and boasts a sleek compact design.
Specifications:
| Weight | 14 lbs |
|---|---|
| Pump Orientation | Horizontal |
| Pump Head Material | brass |
| Connecting Rods | aluminum |
| Max GPM | 3.3 |
| Max L/Min | 12.6 |
| Max PSI | 3100 |
| Max Bar | 213 |
| Power EBHP | 7 |
| Bore Dia mm | 15 |
| Stroke mm | 7.6 |
| CSID Stamp | 9 |
| Inlet (in) | 3/8″ F |
| Outlet (in) | 3/8″ M |
| Max Temp | 140° F |
| Oil Capacity (oz.) | 16 |
| RPM | 3400 |
| Shaft Size | 1″ |
| Shaft Version | Direct Gas Shaft |
| Shaft Type | Hollow |
| Flange | F40 |
| Market | Residential |
| Pump Type | Tri-Plex Plunger |
