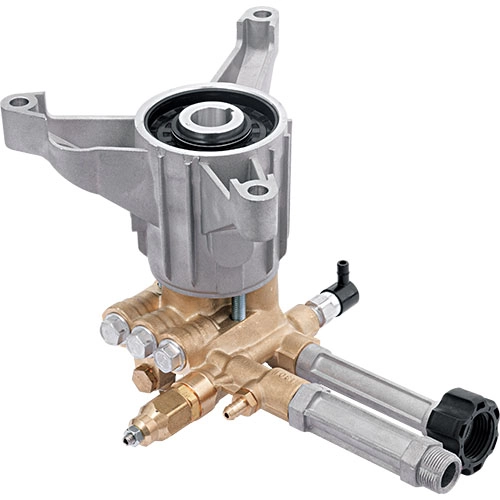

The Annovi Reverberi RMW2G25D, D version 7/8″ hollow shaft triplex pump is ready for direct or pulley driving. This pump is manufactured with a brass pump head suitable for a wide range of conditions. The RMW2G25D can produce up to 2500 Max PSI, 2 Max GPM, and is designed to operate at 3400 RPM. Constructed with frictionless aluminum connecting rods and ceramic pistons, the RMW2G25D weighs in at 7.7 lbs and boasts a sleek compact design.
Specifications:
| Weight | 7.7 lbs |
|---|---|
| Pump Orientation | Vertical |
| Pump Head Material | brass |
| Connecting Rods | aluminum |
| Max GPM | 2 |
| Max L/Min | 7.6 |
| Max PSI | 2500 |
| Max Bar | 172 |
| Power EBHP | 3.4 |
| Bore Dia mm | 12 |
| Stroke mm | 7.58 |
| CSID Stamp | 7 |
| Inlet (in) | 3/4″ GHA |
| Outlet (in) | 22mmx1.4 M |
| Max Temp | 140° F |
| Oil Capacity (oz.) | 2.2 |
| RPM | 3400 |
| Shaft Size | 7/8″ |
| Shaft Version | Direct Gas Shaft |
| Shaft Type | Hollow |
| Market | Residential |
| Pump Type | Axial Radial |
