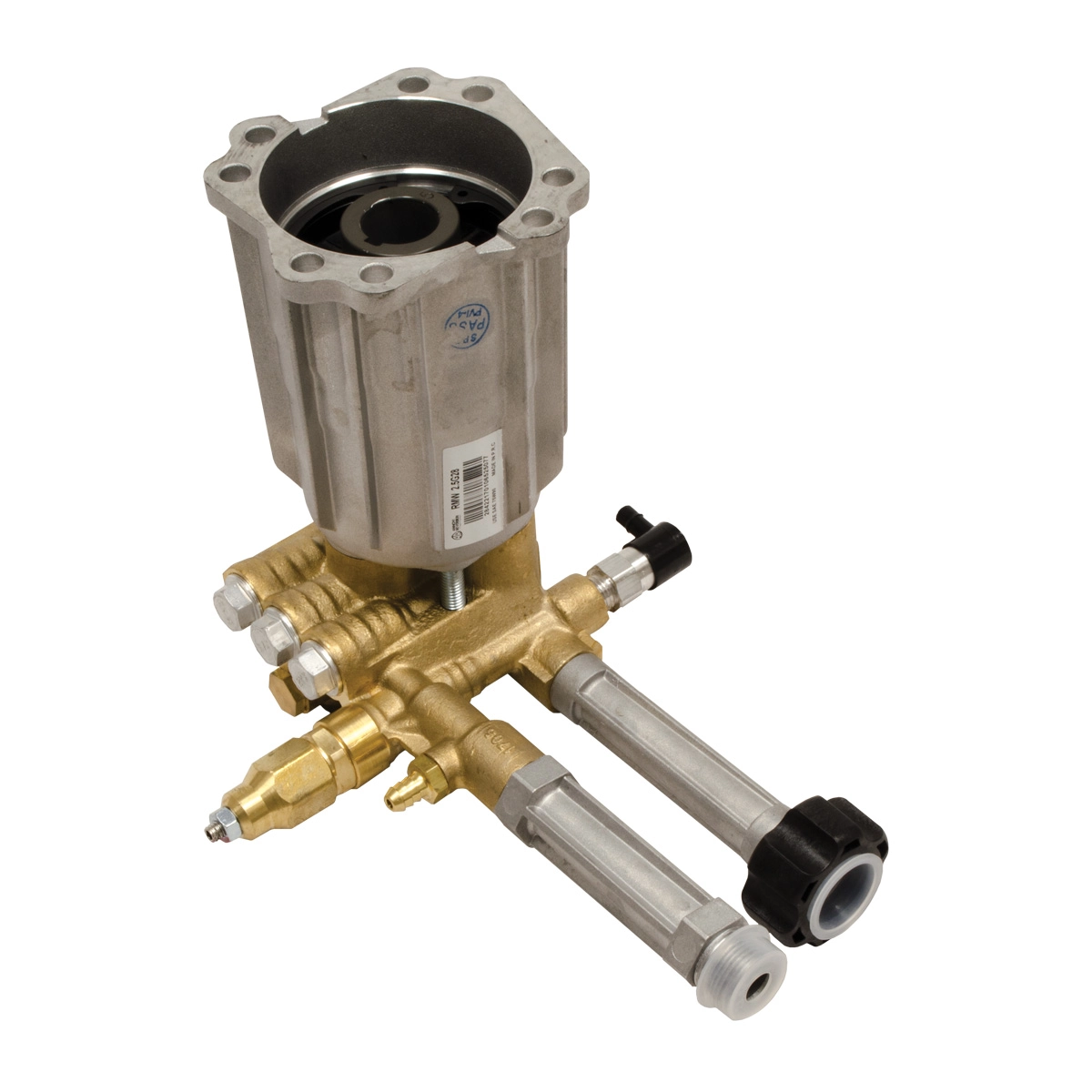

The Annovi Reverberi RMW25G28DF7EZ-TRV, D version 7/8″ hollow shaft triplex pump is ready for direct or pulley driving. This pump is manufactured with a brass pump head suitable for a wide range of conditions. The RMW25G28DF7EZ-TRV can produce up to 2800 Max PSI, 2.5 Max GPM, and is designed to operate at 3400 RPM. Constructed with frictionless aluminum connecting rods and ceramic pistons, the RMW25G28DF7EZ-TRV weighs in at 7.7 lbs and boasts a sleek compact design
Specifications:
| Weight | 7.7 lbs |
|---|---|
| Pump Orientation | Vertical |
| Pump Head Material | brass |
| Connecting Rods | aluminum |
| Max GPM | 2.5 |
| Max L/Min | 9.5 |
| Max PSI | 2800 |
| Max Bar | 173 |
| Power EBHP | 4.5 |
| Bore Dia mm | 12 |
| Stroke mm | 8.3 |
| Inlet (in) | 3/4″ GHA |
| Outlet (in) | 22mmx1.4 M |
| Max Temp | 140° F |
| Oil Capacity (oz.) | 2.2 |
| RPM | 3400 |
| Shaft Size | 7/8″ |
| Shaft Version | Direct Gas Shaft |
| Shaft Type | Hollow |
| Flange | SAE J609 |
| Market | Residential |
| Pump Type | Axial Radial |
| Weight | 7.7 |
